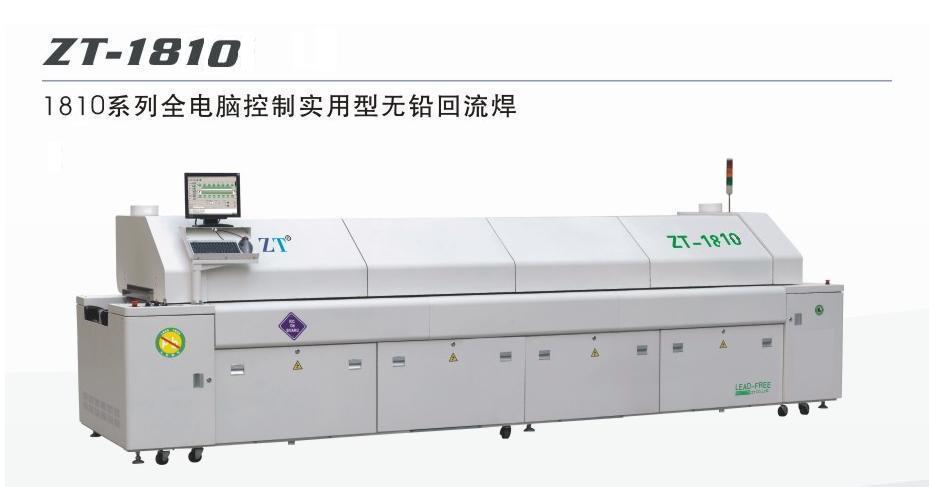

Full PC Control Practical Lead-Free Reflow Oven

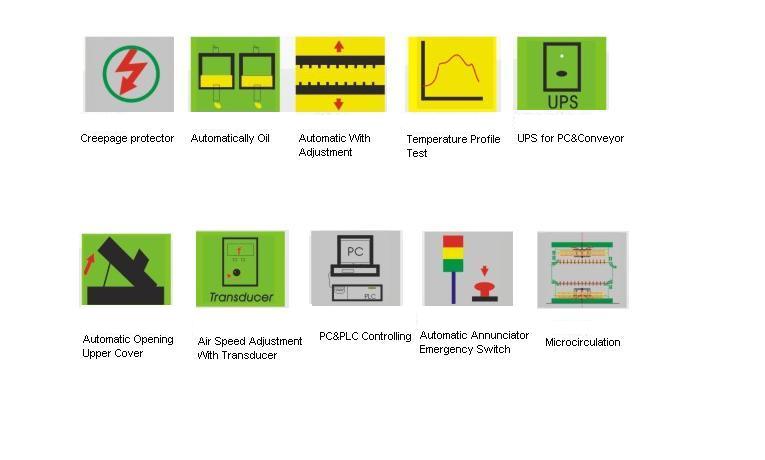

Features
- Windows XP O/S interface,so easy for English/Chinese language altering onscreen.
- PLC with Module control to make operation stable as well as repeatable precision.
- With independent Top/Bottom side microcirculation hot air control, to meet SMT QFP/BGA/CSP parts Reflow.
- Air blower fan controlled by transducer.
- Whole chamber opened by double detent lifter, it’s safety and stable,and easy for chamber inside cleaning.
- Reflow zone can be set as dual or triad mode to meet the lead-free paste process requirement.
- Closed loop control conveyor system, it’s width can be easily adjusted by PC and manual.
- Auto lubricate time setting by PC software, no need manual operational keep long life.
- Online uninterruptible power supply to ensure production safety in case of power off.
- Configure with electric leakage protection and fuses to ensure operator & machine under safety state.
Specifications
|
MODEL |
ZT-1818-LF |
|
GENERAL |
|
|
Dimension(L*W*H) |
5400x1400x1650/mm |
|
Weight |
1500Kg |
|
Number Of Heating Zones |
UP 8/Bottom 8 |
|
Length Of Heating Zones |
3000mm |
|
Heating Method |
Microcirculation Hot Air |
|
Number Of Cooling Zones |
1（Internal） |
|
Length Of Cooling Zones |
800mm |
|
Cooling Method |
Natural Cooling |
|
Standard Color |
Computer White |
|
Exhaust Volume |
10m³/min.x2(Zone） |
|
Standard Features Of Conveyor System |
|
|
Conveyor Direction |
Chain Rail + Mesh Belt |
|
Conveyor Width |
450mm |
|
Range Of Rail Width |
Double Rail 50-350mm |
|
Conveyor Height |
900±20mm |
|
Conveyor Speed Range |
300-2000mm/min. |
|
Direction |
L - R （Optional：R - L ） |
|
Standard Features Of Control System |
|
|
Temperature Deviation on PCB |
±2° |
|
Temprerature Control Precision |
±1° |
|
Zone Adjacent to the Max. Extent Lavin |
Between Heating Area 50°,Between Heating with Welding Area Max. to 100°. |
|
Temperature Setting Range |
Room Tempature ~350° |
|
Temperature Control Method |
PID +SSR Drive |
|
Power Supply |
5line 3phase 380V 50/60Hz |
|
Power For Warm Up |
55KW |
|
Power Consumption |
Can Be Set |
|
Total Power |
10KW |
|
Trouble Aram |
Temperature Alarm |
