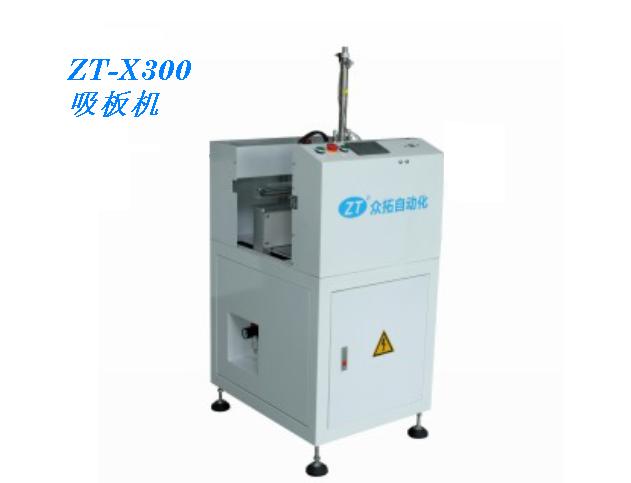

MODEL： ZT-X300
Suction Machine
Features
1. Low alloy guide rail,solid and durable and beautiful.
2. PLC + Touch screen control the whole machine, stable and reliable work.
3. Touch screen operation,with functions of automatic fault diagnosis, convenient man-machine dialogue.
4. In the low number of light and sound and touch screen prompts alarm function.
5. Low can be adjusted according to the thickness of the PCB material the height of the wall.
6. Humanized design to ensure that PCB is not to be pushed to break, and increase the output capacity.
7. Low have bare board automatically send board function.
8. Using automatic off board, effectively shorten the upper time.
9. Low equipment electrical components are famous brands.
10. Low standard on the SMEMA signal interface.
11. Covers an area of low smaller machines.
Specifications
|
MODEL |
ZT-X300 |
|
PCB Size |
50*50mm - 300*400mm |
|
PCB Thickness |
0.6-3.0mm |
|
Cycle Time |
About 10 Seconds |
|
Send Highly |
900±20mm(or User specify） |
|
Transfree Direction |
L - R / R - L |
|
Power Supply |
SINGLE220V |
|
Start/No-Load Power |
105W |
|
Gas Pressure |
4-6Kgf |
|
Fuselage Size |
600 * 600 * 1000 mm |
|
The Body Weight |
180Kg |
