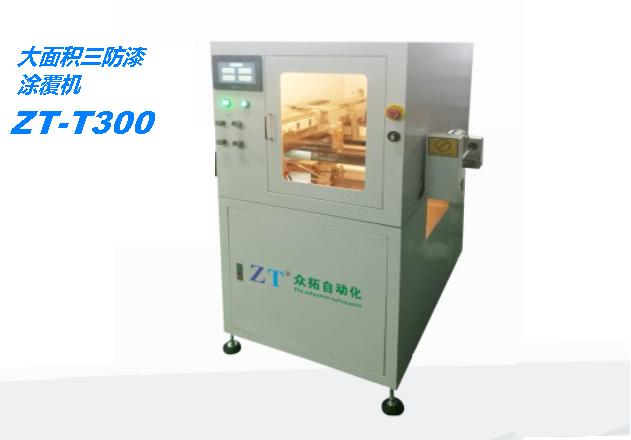

Model：ZT-T300
Three Anti-Paint Coating Machine
Features
1. transport of 35B stainless steel belt chain, transport smooth;
2. single observation window, convenient operation and maintenance;
3. the transmission mechanism adopts the precision modular design, the transmission is accurate, the life is long, and it is easy to maintain.
4. Thespray paint is driven by stepper motor, and it has economic operation and automatic spray paint on the board.
5. the spray head of three anti lacquer uses PV technology, which has controllable paint and controllable atomization.
6. isolating air suction device, the three defense paint is filtered out of the filter after filtering the filter net.
7. powerful parameter library function, all kinds of PCB process parameters can be invoked on demand.
8. using the weinview touch screen +PLC control system, ensure that the system has reliability and stability;
9. system fault self diagnosis, fault cause automatically display, troubleshooting mode at any time inquire;
10. claw washing device, applying for national patent, with high independent intellectual property.
Specifications
|
MODEL |
ZT-T300 Coating |
|
PCB Adjustable Width |
Max. 50mm - 300mm |
|
PCB Transport Height |
900±20mm |
|
Control Mode of Whole |
PLC + TouchScreen |
|
Mobile Way |
Step Motor +Line Guide Rail |
|
The Nozzle |
PV Special Valve |
|
Power Supply |
3 Ph5Line 380V |
|
Total Power |
Max. 1.5Kw |
|
Air Supply |
4 -7Kg/Cm2 |
|
Installation Dimension |
L1000*W1400*H1650 mm |
|
Weight |
Approx. 300Kg |
