Large Semi-Automation 1.2M Printer
Features
1. The Japan Mitsubishi Touch screen indicates the speed offer squeegee and the record, To ensure the stability and precision.
2. Suitable for difference guts and solder paste, automatically to adjust the parameter for good printing result.
3. Free adjustable arm-moving, framework of 470-650mm.
4. Combination universal molding.
5. Accurate floating printing table with X,Y,Z, Micro-adjustable system.
6. English/Chinese touch screen control with user-friendly easy to learn and operate, automatically to indicate the error and offers guidance.
7. High precision motor: adopts linear square track accompanied with invertor transmission.
|
MODEL |

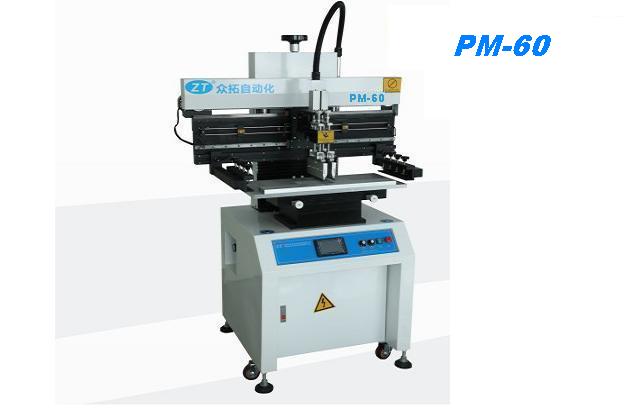

PM-60 Large 1.2Meters Semi-Automation Printer |
|
PCB Printing Size |
Max. 350mm X 300mm |
|
Printing Area |
320mm X 450mm |
|
PCB Fixed System |
Shape / Stopper Pin |
|
Frame Size |
370 x 470 - 550 x 650 mm |
|
Adjusting For Table |
Front/Back ±10mm ， R/L ±10mm |
|
Printing Accuracy |
±0.02mm |
|
Repeating Accuracy |
±0.02mm |
|
PCB Thickness |
0.2-2.0mm |
|
Air Source |
4-6kg/cm2 |
|
Power Supply |
AC220V 50Hz |
|
Dimension |
900 x 900 x 1650mm（L`W`H) |
|
Net Weight |
250Kg |
