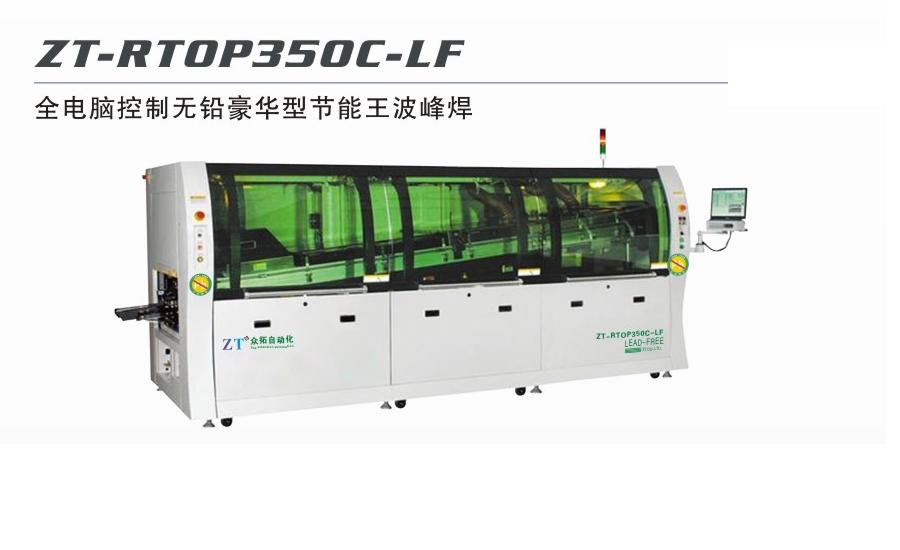

Full PC Control Luxury Lead-free Wave Soldering

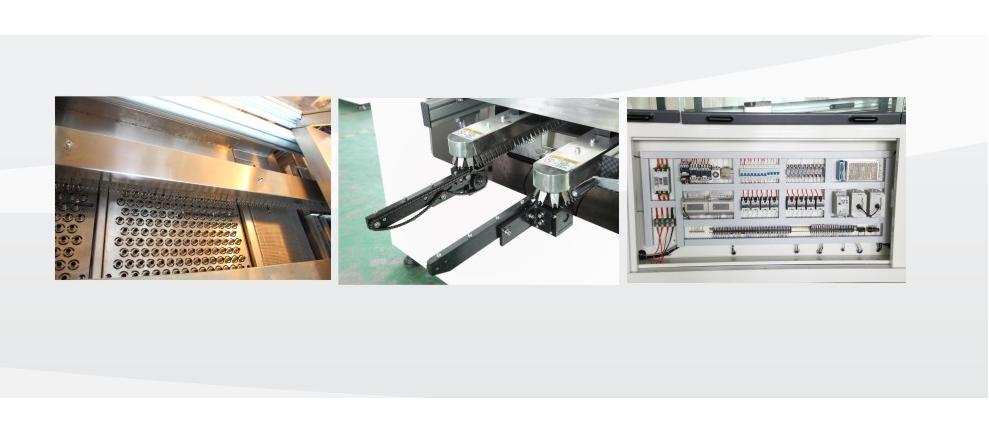

Features
- Designed for lead-free process,
- Overall appearance adopt electrostatic powder coating, no dropping painting,
- The maintenance door all can be take down, its streamline appearance,
- Machine controlled by PC with WinfyXP O/S, dynamic monitor utilize graph, words & profiles to show system state,such as alarm, operation guide etc.,
- Configure PLC control the whole machine, communication to PC with MIDBUS Protocol, it’s stable and prevent machine crashed,
- Conveyor belt width is easily changed by manual,
- Configure with PCB entrance guide system, have no used for PCB loading machine, it save money for you.
- Flux spray system adopt Germany FEST stockless cylinder and KaiT professional liquid nozzle, the nozzle is never damage,
- Preheated heater adopt far infrared lamp to supply continues heating capability, to reduce thermal shock for PCB,
- Lead-free soldering pot with low Tin oxide design wave nozzle, special for nozzle width, liquid Tim speed and thick adjustable,
- Taiwan TCG high temperature wave motor, with step-less change and control independent,
- Auto-start up /shut down accordingly customer setting time and date.
- Automatic finger clean system,
- With acoustic-optic alarm and Emergency stop protection,
- Special Nitrogen inject system design to ensure soldering effect, Nitrogen consumption is lowest in SMT’s profession.
Specifications
|
Model |
ZT-RTOP350C-LF PC Control |
|
Control Method |
PC + PLC /Auto Add. Tin.(Option) |
|
Conveyor Motor |
1P AC220V 90W |
|
Conveyor Speed |
300-1800mm/Min. |
|
PCB Size |
50-350mm |
|
Preheating Length |
2000mm Four PID control Temp.（Room Temp.-250） |
|
Preheating Way |
IR / Hot Air/ Mirc-circle |
|
Solder Temperature |
12KW Room Temp. To 300 |
|
Solder Capacity |
420Kg |
|
Wave Height |
0-12mm |
|
Wave Motor |
3P AC220V 0.36KW*2PCS |
|
Finger Cleaning Pump |
1P AC220V 6W |
|
Cooling Method |
Forced Air |
|
PCB Transport Direction |
L-R / R-L |
|
Flux Capacity |
6 LITRES |
|
Air Pressure of Flux |
3-5BAR |
|
Conveyor Angle |
4-6 |
|
Power Supply |
3P AC380V 50Hz |
|
Normal/Starting Power |
22KW/5KW |
|
Dimension |
4500x1400x1650 |
|
Appearance Size |
4600x1400x1650 |
|
Weight |
1600Kg |
